BC-6聲光報警器YB-BF
BC-6聲光報警器YB-BF產品中文介紹

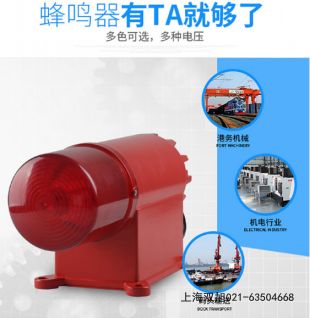

BC-6聲光報警器YB-BF是一款專為工業環境設計的多功能報警設備，適用于起重機械、港口碼頭、冶金礦山等場所。該產品采用鋁合金外殼，結構堅固且輕便，具有良好的防水、防塵和抗震性能，能在惡劣環境中穩定工作。報警器集成了高亮度LED閃光燈和高分貝揚聲器，可實現聲光同步報警，有效提升警示效果。LED燈管壽命超過10萬小時，燈光顏色可選紅、黃、綠等，閃爍頻率可根據需求定制。揚聲器音量可達106dB以上，音調支持警笛音、防空音、工程音等多種模式，也可根據用戶需求定制語音內容。工作電壓覆蓋AC24V~AC380V及DC24V，適配性強，安裝方式為螺絲固定，操作簡便。112229
BC-6 Audible and Visual Alarm YB-BF Product Introduction in English
The BC-6 Audible and Visual Alarm YB-BF is a versatile industrial alarm device designed for environments such as cranes, ports, and mining facilities. Its aluminum alloy housing ensures durability and lightweight portability, with IP65 protection等級 for resistance to water, dust, and vibration. The alarm features high-brightness LED strobe lights (over 100,000 hours lifespan) and a powerful speaker (≥106dB), enabling synchronized audio-visual alerts for enhanced safety. LED colors include red, yellow, and green, with customizable flash frequencies. The speaker supports multiple tones like sirens,防空音, and engineering alarms, with optional voice prompts. Compatible with AC24V~AC380V and DC24V power inputs, it offers easy screw-mount installation. Ideal for noisy or large-scale industrial applications.112230
產品特點與優勢
BC-6聲光報警器YB-BF采用集成電路設計，抗干擾能力強，工作穩定性高。外殼密封性能良好，適合露天或高濕度環境使用。其模塊化設計允許靈活配置音調和燈光模式，例如可設置為設備啟動提示（如“天車啟動請注意”）或危險預警。產品重量輕（約1.8kg），安裝尺寸為180*150mm，適配多數設備空間。此外，音量可通過電位器調節，滿足不同噪音環境的需求。101627
Key Features and Benefits
The BC-6 alarm integrates advanced circuit technology for reliable operation in electromagnetic interference-prone areas. Its sealed construction suits outdoor or humid conditions, while modular design supports flexible tone/light customization (e.g., "Caution: Machine Starting"). Weighing only 1.8kg with 180*150mm dimensions, it fits most equipment layouts. The adjustable volume potentiator adapts to varying noise levels, ensuring clear alerts in industrial settings.101627
應用場景
適用于天車、行車、皮帶輸送機等設備的運行警示，也可用于隧道、地下礦井的安全信號提示。在港口機械中，能有效協調作業人員避讓；在冶金車間，可配合大型設備啟動或故障報警。產品通過聲光雙重信號強化警示效果，降低事故風險。121929
Applications
Ideal for operational alerts on cranes, conveyors, and tunneling/mining safety signals. In port machinery, it enhances worker coordination, while in metallurgical plants, it pairs with equipment startups or故障 alerts. Dual audio-visual signals significantly improve hazard awareness.121929
BC-6聲光報警器YB-BF
BC-6聲光報警器YB-BF
大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
BC-6聲光報警器YB-BF
